ER系列产品
特点及应用范围：
具有损耗小，输出功率大，工作频率宽，温升低，性能稳定等特点。广泛应用于开关电源、安防系统、电视机电源、导航等。

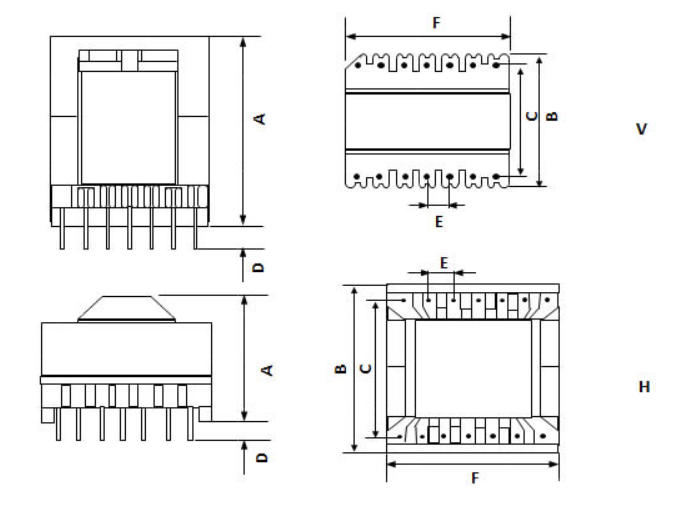

产品序号及参数：
|
序号 |
针数 |
尺寸(mm) |
|||||||
|
A |
B |
C±0.5 |
D±0.5 |
E |
F |
TYPE |
|||
|
XC-ER2516 |
8 |
19.5 |
19.5 |
12.5 |
4 |
5 |
25.5 |
V |
|
|
XC-ER2803 |
12 |
30.5 |
23 |
17.5 |
4 |
5 |
31 |
V |
|
|
XC-ER2805-1 |
12 |
21 |
28.1 |
25.5 |
4 |
3.7 |
29 |
H |
|
|
XC-ER2817 |
12 |
20.5 |
34 |
30 |
4 |
5 |
30.2 |
H |
|
|
XC-ER2818 |
10 |
19 |
22.8 |
17.5 |
4 |
5 |
28 |
V |
|
|
XC-ER2820 |
12 |
36 |
26.5 |
20 |
4 |
5 |
30 |
V |
|
|
XC-ER3507 |
14 |
43.5 |
28.3 |
22.5 |
4 |
5 |
35.5 |
V |
|
|
XC-ER3501 |
16 |
28 |
43.6 |
35 |
4 |
5 |
40 |
H |
|
|
XC-ER3905 |
16 |
46 |
30 |
25 |
4 |
5 |
40 |
V |
|
|
XC-ER4007 |
16 |
48 |
32.1 |
25 |
4 |
5 |
40 |
V |
|
|
XC-ER4015 |
16 |
28.5 |
43.5 |
35 |
4 |
5 |
40 |
H |
|
|
XC-ER4205 |
14 |
46 |
30 |
25 |
4 |
5 |
42 |
V |
|
|
XC-ER4220 |
14 |
45 |
37.5 |
30 |
4 |
5 |
42 |
V |
|
|
XC-ER4954 |
18 |
36.5 |
57 |
45 |
4 |
5 |
49.5 |
H |
|
